Clock module
Published @ 12-04-2022
— Beep boop
Clock with variable speed or single pulse output, essentially the ben eater clockmodule on a custom pcb.
I wanted to have some kind of tool that I could use to clock multiplexer circuits at a fairly low speed.
The board features a 7805 voltage regulator so you can use it as a powersupply for other 5v circuits aswell.
You can find the project over here.

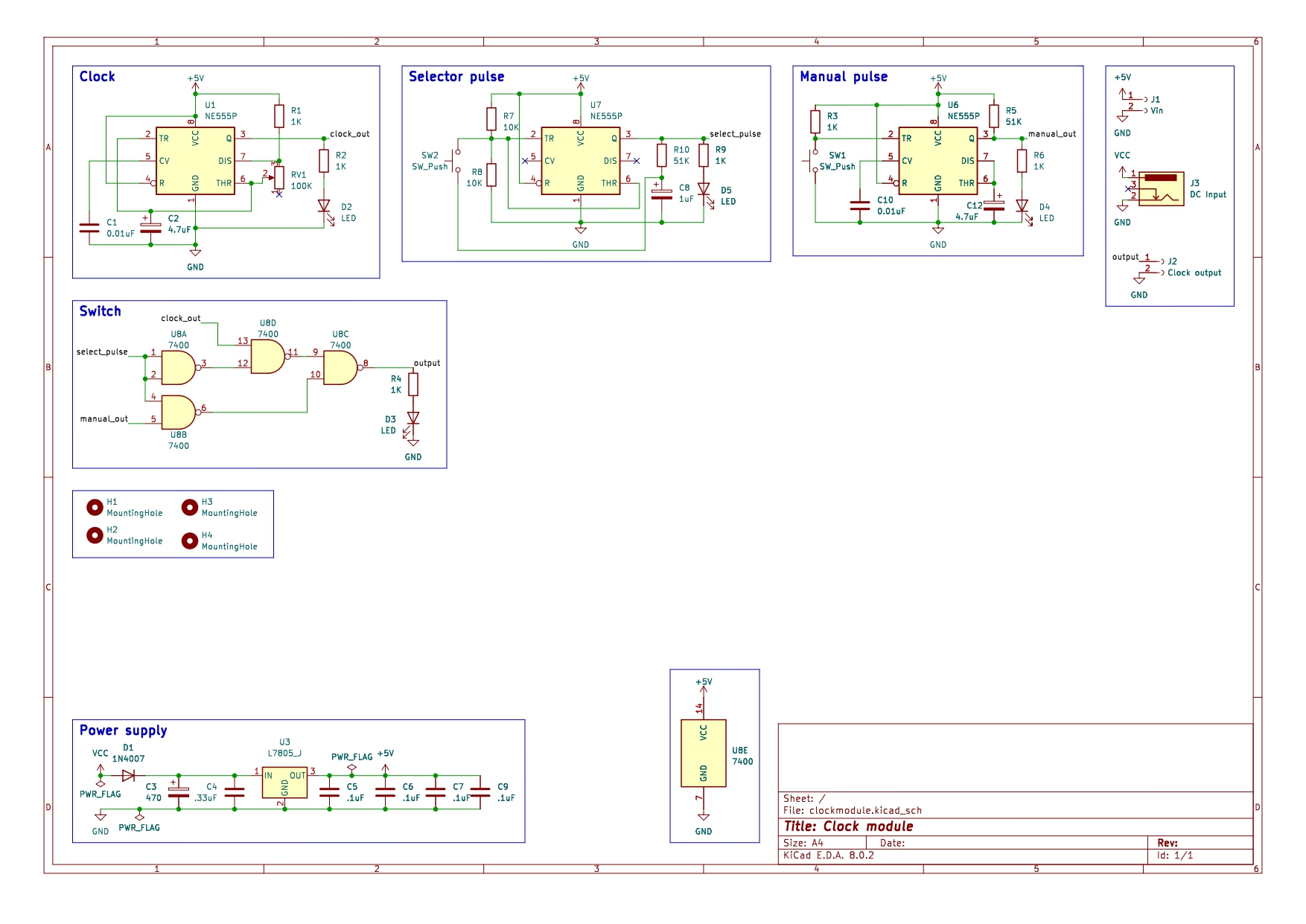

Schematic

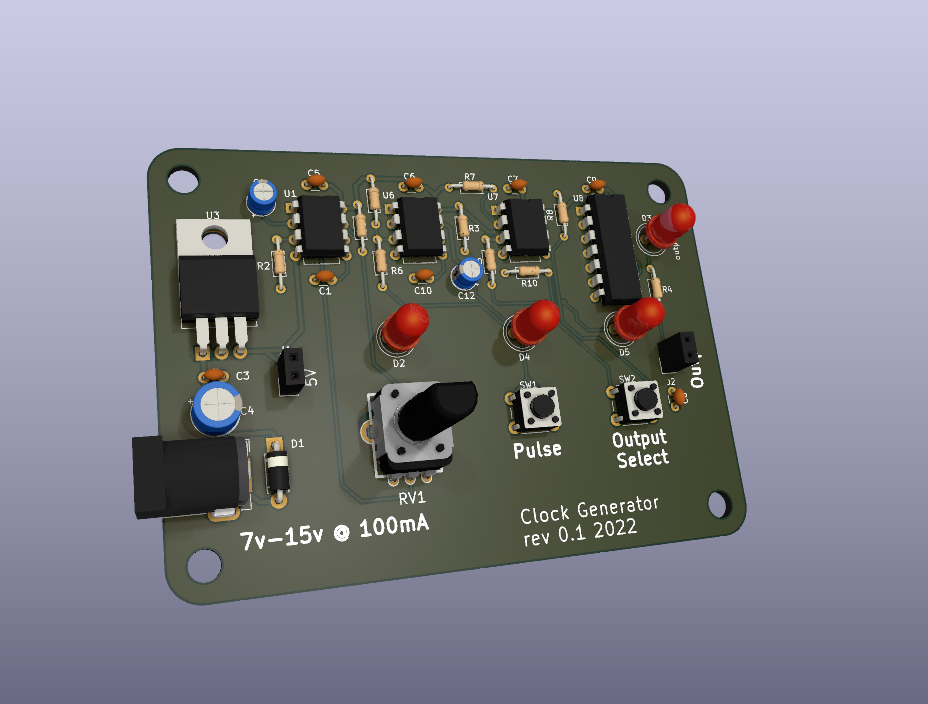

Render
